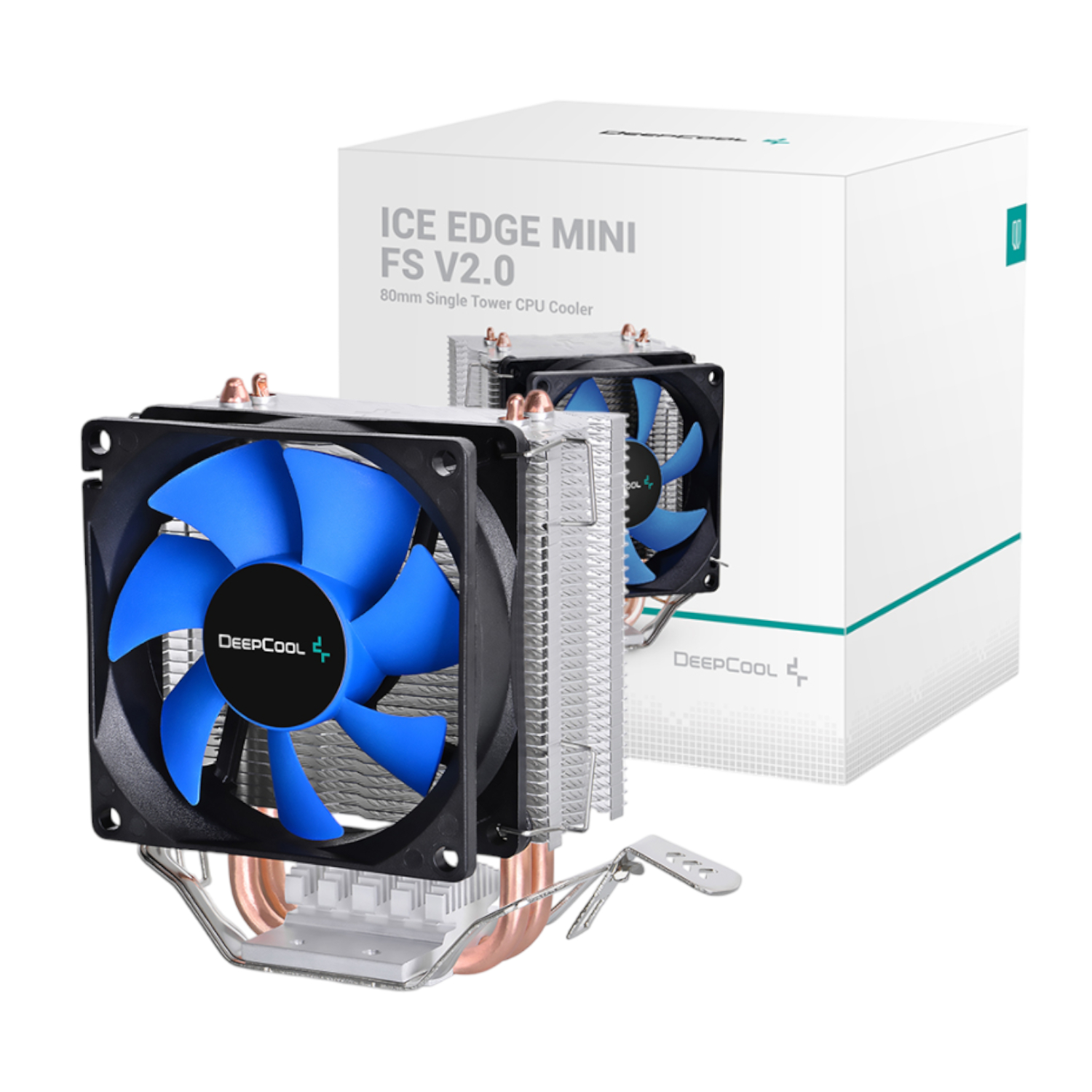

DeepCool Ice Edge Mini FS V2.0 80mm CPU Air Cooler – Blue

Compact cooling power for modern Intel and AMD sockets

Quick Specs

• Dual heatpipe design offers rapid heat transfer from the CPU.
• 80mm fan operates quietly with a maximum noise level of 24.7 dB(A).
• Hydro bearing ensures long operational lifespan and smooth rotation.
• Supports current mainstream Intel LGA1851/1700/1200 and AMD AM5/AM4 platforms.
• Low-profile design ensures broad compatibility within smaller computer cases.

The necessity of cool precision

This cooler is forged for the builder who understands that performance requires thermal discipline, especially within constrained environments. The DeepCool Ice Edge Mini FS V2.0 is not for the extreme overclocker; it is for the professional, the compact system enthusiast, or the standard user demanding reliable, quiet operation where space is the primary constraint, making it the ideal low profile cooler.

Solving the small space dilemma with a low-profile cooler

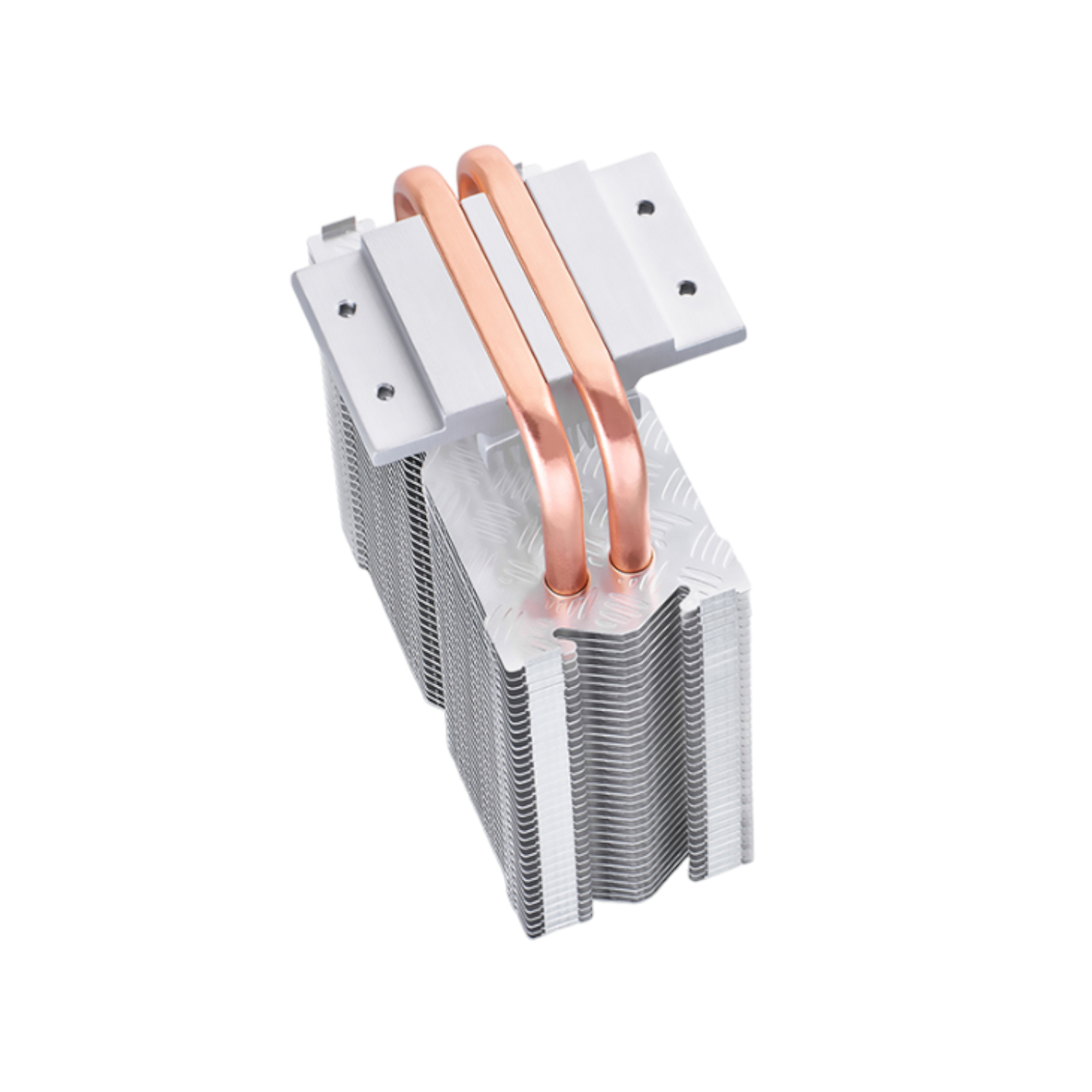

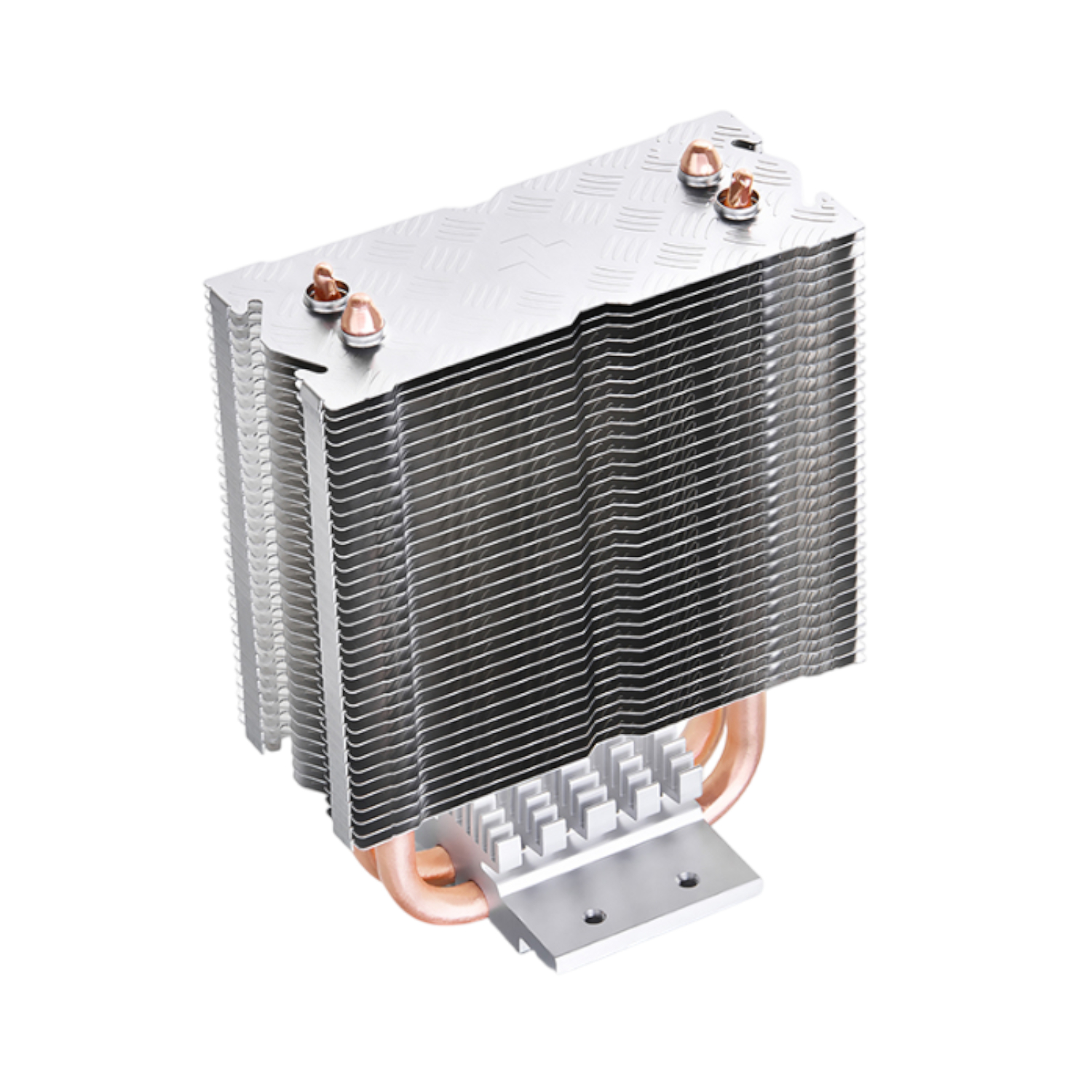

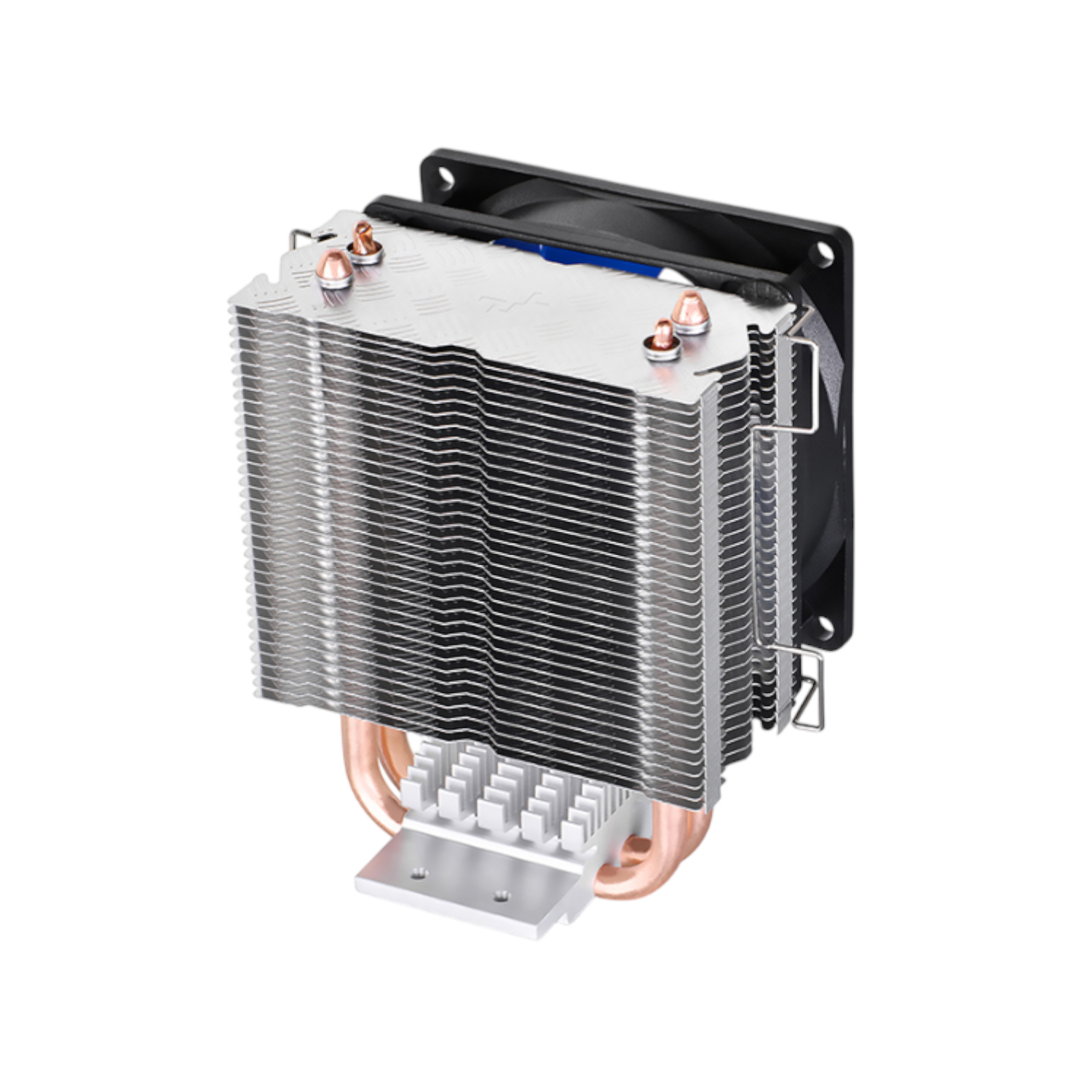

The fundamental problem this unit addresses is thermal throttling in Small Form Factor (SFF) or budget builds. Many modern CPUs generate significant heat, yet standard cooling solutions physically obstruct components or simply do not fit the chassis. This unit offers a direct, effective solution by employing a compact heatsink coupled with dual copper heatpipes to efficiently pull heat away from the integrated heat spreader. This low profile CPU cooler is engineered for tight fits.

Calculating performance value of the DeepCool Ice Edge Mini FS

The value proposition lies in its efficiency-to-size ratio. With two 6mm copper heatpipes, heat moves away from the processor swiftly. The 80mm fan, spinning up to 2200 RPM, pushes 25.13 CFM of air, maintaining adequate thermal headroom for standard desktop tasks, gaming, or consistent office workloads. It matters because reliable cooling prevents performance degradation and extends component longevity, a key function of the DeepCool Ice Edge Mini FS.

Constructed for endurance of the DeepCool Ice Edge Mini FS V2.0

The core mechanical truth lies in the Hydro Bearing. This bearing type is engineered for reduced friction, which translates directly into a longer Mean Time Between Failures (MTBF) compared to standard sleeve bearings. While specific warranty periods are defined by the point of sale in South Africa, the robust bearing choice signals DeepCool’s intent for durability under sustained use, ensuring the longevity expected from a quality deepcool ice edge mini fs.

The demand for quiet efficiency with a low-profile CPU cooler

Users seek cooling that performs its duty without announcing its presence. By capping noise output at a maximum of 24.7 dB(A), this cooler allows concentration on work or immersion in gameplay, rather than being distracted by excessive fan whine. It is the superior choice when silence and compact form factor are non-negotiable prerequisites for a successful low profile CPU cooler installation.

FEATURES:

• Transfer heat rapidly across the processor surface using dual 6mm copper heatpipes.
• Maintain acoustic comfort throughout your session because the maximum noise output is kept low at 24.7 dB(A), ideal for quiet builds.
• Ensure consistent, long-term performance because the Hydro Bearing resists wear and tear better than older bearing technologies.
• Install this cooler confidently across numerous builds since its compact profile supports many Intel and AMD motherboards.
• Power this unit reliably using standard 12 VDC power delivered via a simple 3-pin connection.

SPECIFICATIONS:

• Fan Connector: 3-pin
• Bearing Type: Hydro Bearing
• Fan Rated Voltage: 12 VDC
• Fan Rated Current: 0.12 A
• Fan Power Consumption: 1.44 W
• Heatpipe: ?6 mm?2 pcs
• Fan Dimensions: 80?80?25 mm(L?W?H)
• Fan Speed: 2200?10% RPM(max)
• Fan Airflow: 25.13 CFM
• Fan Air Pressure: 2.23 mmAq
• Fan Noise: ?24.7 dB(A)
• Intel CPU Support: LGA1851 / 1700 / 1200 / 1151 / 1150 / 1155
• AMD CPU Support: AM5 / AM4
• Colour: Blue
• Heatsink Dimensions: 8.5 x 5.7 x 11.2 cm
• Product Dimensions: 11.9 x 7.5 x 11.2 cm
• Product Weight: 258g

WHAT’S IN THE BOX:

• DeepCool Ice Edge Mini FS V2.0 80mm CPU Air Cooler – Blue x1

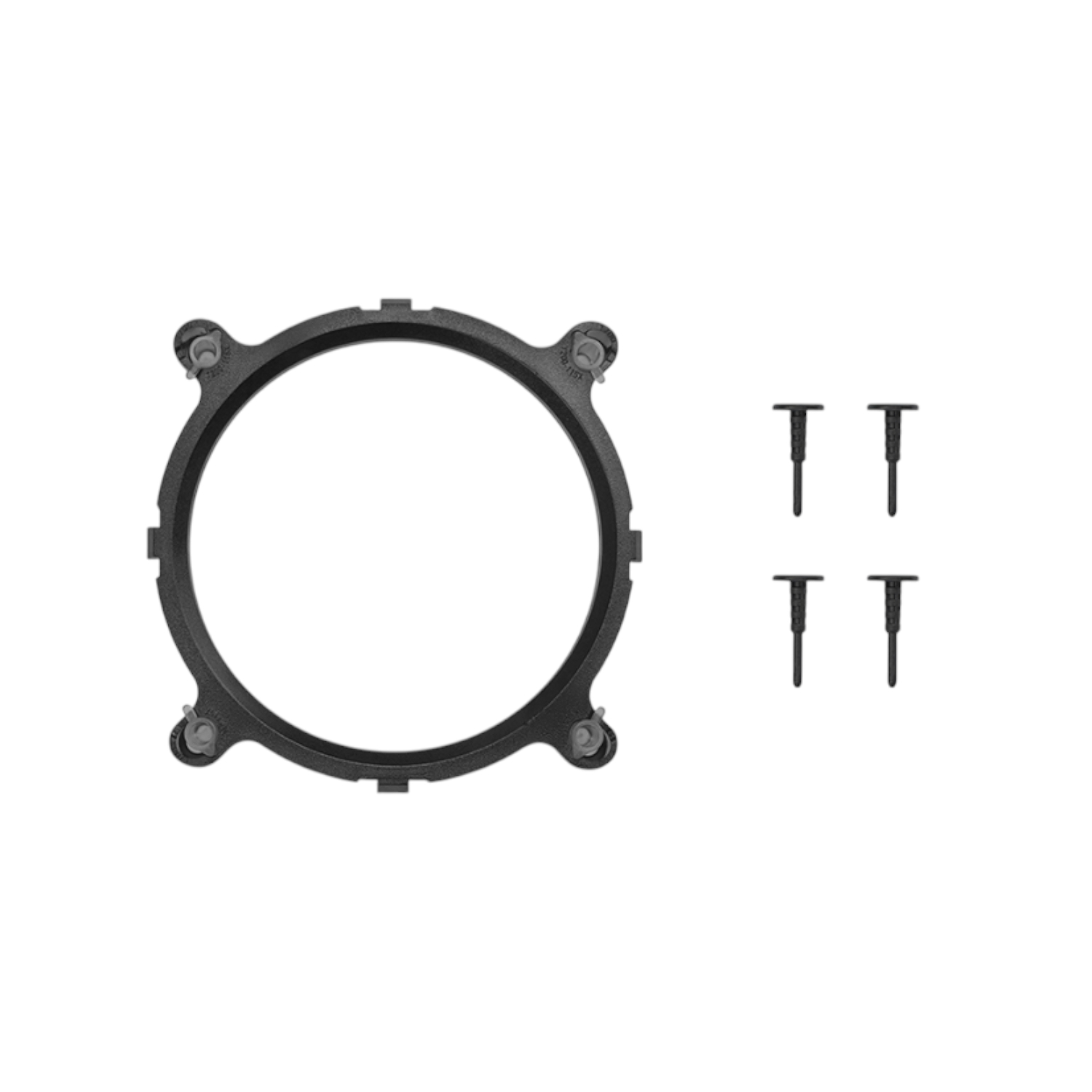

• Intel and AMD mounting kit x1

Why DeepCool?

DeepCool commits to delivering thermal engineering that stands up to real-world stress. In the South African market, where components must endure varying environmental conditions, our focus remains on verifiable specifications and functional longevity. Choosing the DeepCool Ice Edge Mini FS means opting for cooling solutions designed with clarity and practical application as the primary objective, perfect for any low profile cooler requirement.
