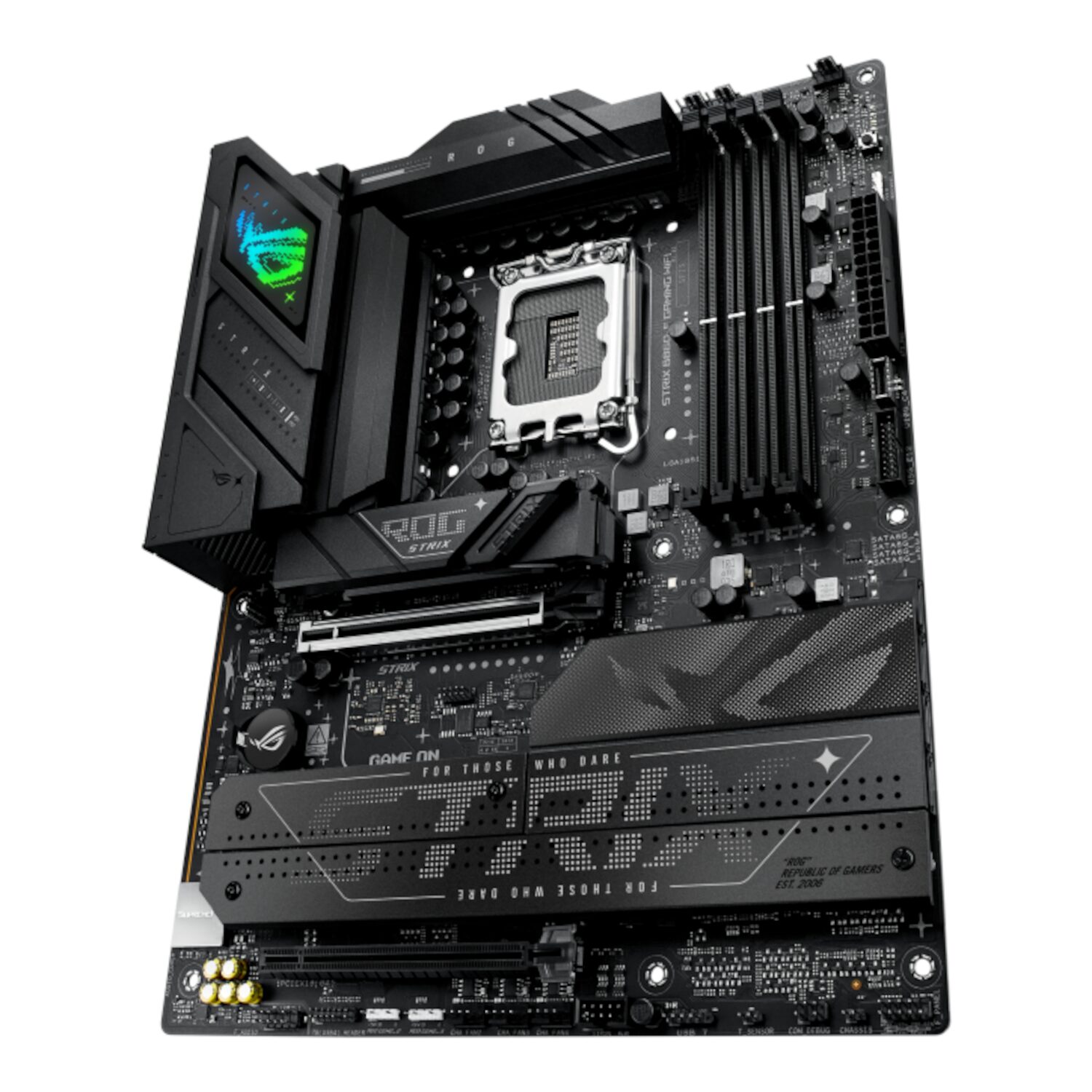

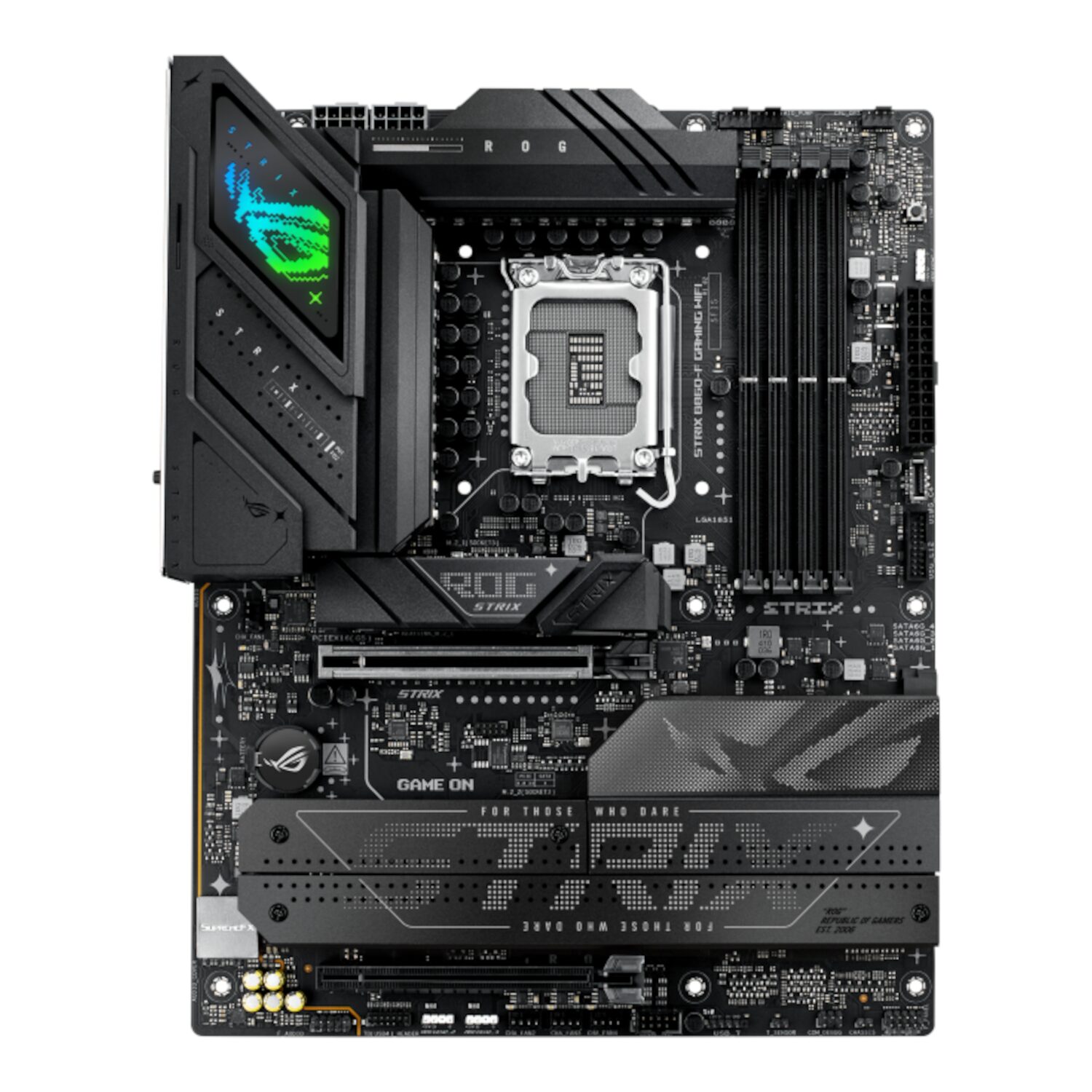

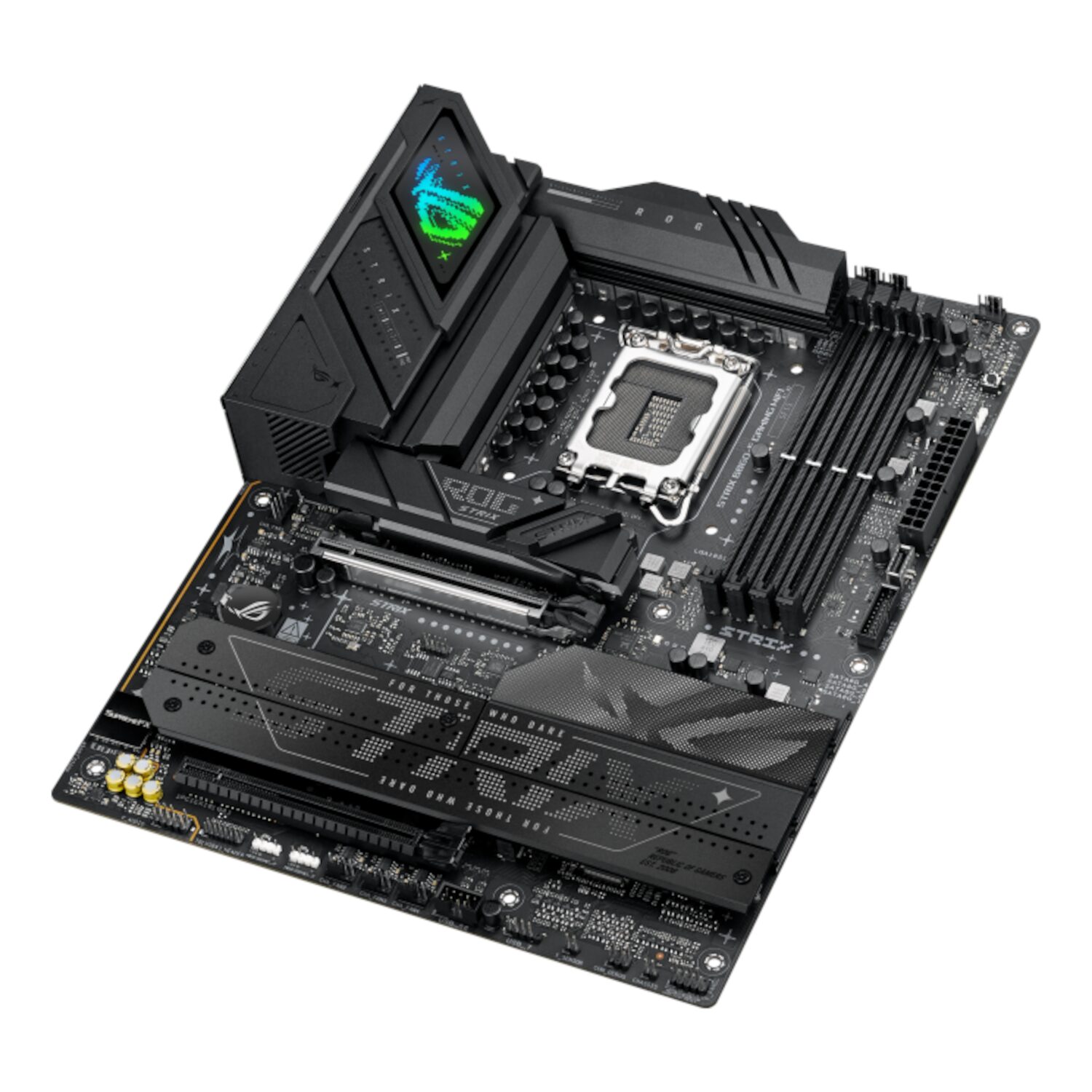

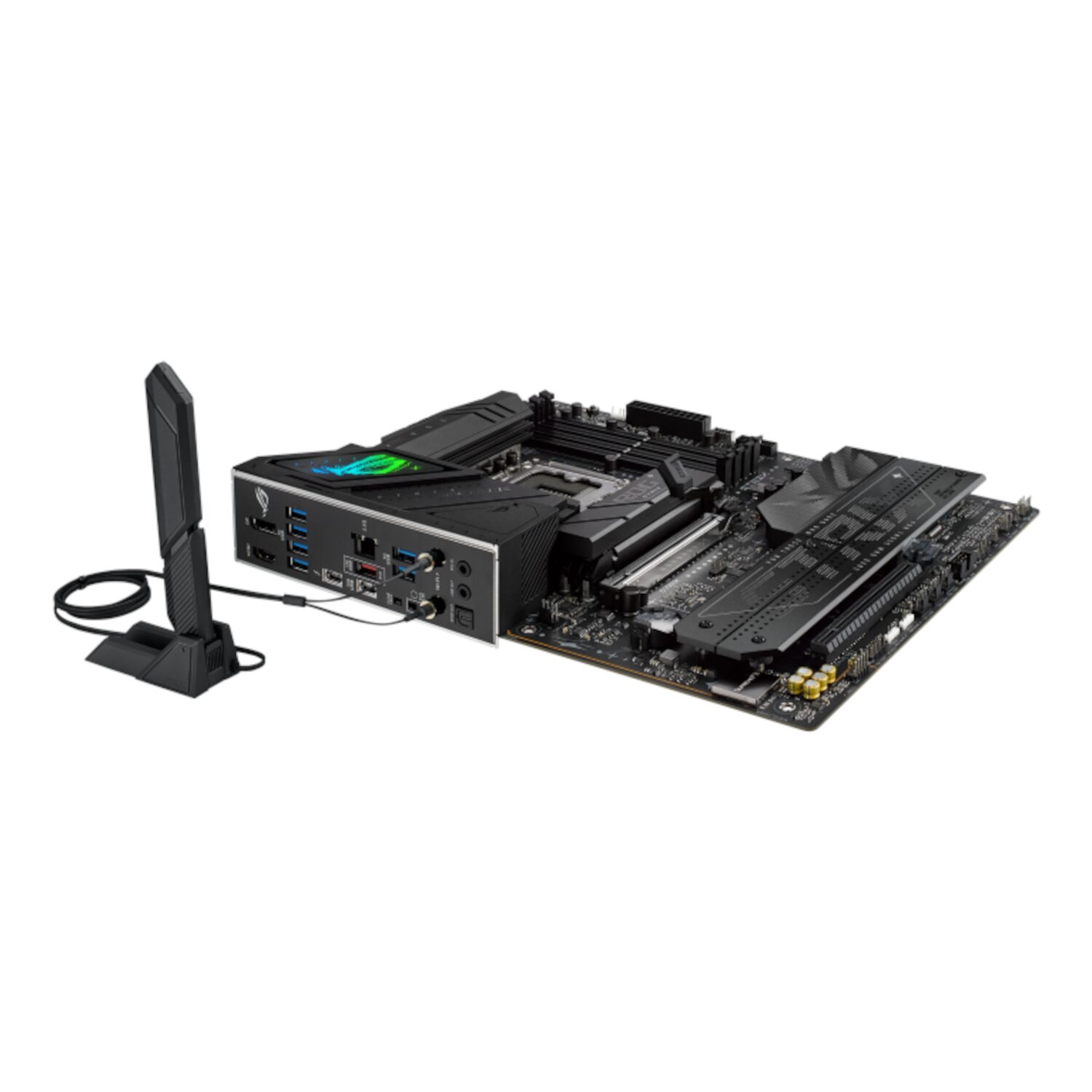

Asus ROG STRIX B860-F Gaming Wi-Fi Motherboard – Intel LGA1851

Engineered for the next generation of gamers, the Asus ROG STRIX B860-F Gaming motherboard delivers powerful performance, exceptional connectivity, and signature ROG design tailored for high-performance builds. Built on the robust Intel? B860 chipset and designed to support 14th and 13th Gen Intel? Core? processors on the LGA1851 socket, this motherboard offers gamers the tools to dominate their arena.

With DDR5 memory support, PCIe 5.0 slots for lightning-fast graphics and storage access, and onboard WiFi 7 capabilities, the Asus ROG STRIX B860-F Gaming provides an ultra-responsive platform for competitive gaming and content creation. Its enhanced power design and extensive cooling features ensure consistent performance, even under heavy workloads. Furthermore, integrated Thunderbolt? 4 headers offer seamless connectivity for next-gen peripherals and high-speed data transfer.

Targeted at gamers, power users, and performance PC builders, the Asus ROG STRIX B860-F Gaming stands out with its bold aesthetics, RGB lighting compatibility, and intuitive DIY-friendly features. Whether you’re customising your setup with Armoury Crate or optimising system performance with AI-enhanced tuning, this motherboard delivers.

Every aspect of the Asus ROG STRIX B860-F Gaming is fine-tuned to elevate your PC experience, ensuring that style meets substance in one powerful package.

FEATURES:

• AI suite 3 & armoury crate
• Thunderbolt? 4 header support
• Integrated Wi-Fi 7 & Intel 2.5Gb ethernet
• PCIe 5.0 expansion: Ideal for modern GPUs and NVMe drives
• DDR5 memory support:? High-bandwidth DDR5 memory modules
• ROG SupremeFX audio with premium capacitors and advanced shielding
• Aesthetic ROG design ? Sleek black PCB, RGB headers, and bold cybertext design
• Robust power solution: 16+1+1 power stages, alloy chokes, and durable capacitors
• Intel LGA1851 socket ? Compatible with 14th and 13th Gen Intel? Core? processors
• DIY-friendly layout includes pre-mounted I/O shield, Q-LED diagnostic, PCIe Slot Q-Release, and BIOS FlashBack?

SPECIFICATIONS:

• CPU:
  • Intel? Socket LGA1851 for Intel? Core? Ultra Processors(Series 2)
  • Supports Intel? Turbo Boost Technology 2.0 and Intel? Turbo Boost Max Technology 3.0
• Chipset: Intel? B860 Chipset
• Memory:
  • 4 x DIMM slots, max. 256GB, DDR5
  • Support up to 9066MT/s (OC), Non-ECC, Un-buffered,Clocked Unbuffered DIMM (CUDIMM)*
  • Dual-channel memory architecture
  • Supports Intel? Extreme Memory Profile (XMP) memory module
  • DIMM Fit
  • ASUS Enhanced Memory Profile III (AEMP III)
• Graphics:
  • 1 x DisplayPort
  • 1 x HDMI? port
  • 1 x Intel? Thunderbolt? 4 port (USB Type-C?) supports DisplayPort and Thunderbolt? video outputs
• Expansion Slots:
  • Intel? Core? Ultra Processors(Series 2)
  • 1 x PCIe 5.0 x16 slot (supports x16 mode)
  • Intel? B860 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
• Storage:
  • Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel? Core? Ultra Processors(Series 2)
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • Intel? B860 Chipset
  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
• Ethernet
  • 1 x Intel? 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 7
  • 2×2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Supports Wi-Fi 7 160MHz bandwidth, with a transfer rate of up to 2.9Gbps.
  • Bluetooth? v5.4
• USB
  • Rear USB (Total 9 ports)
  • 1 x Thunderbolt? 4 port (1 x USB Type-C?)
  • 1 x USB 20Gbps port (1 x USB Type-C?)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 6 x USB 5Gbps ports (6 x Type-A)
  • Front USB (Total 6 ports)
  • 1 x USB 10Gbps (1 x USB Type-C?)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
    • Impedance sense for front and rear headphone outputs
    • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    • High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input
    • Supports up to 32-bit/384 kHz playback on the front panel
  • Audio Features
    • SupremeFX Shielding Technology
    • Savitech SV3H712 AMP
    • Rear optical S/PDIF out port
    • Premium audio capacitors- Audio cover

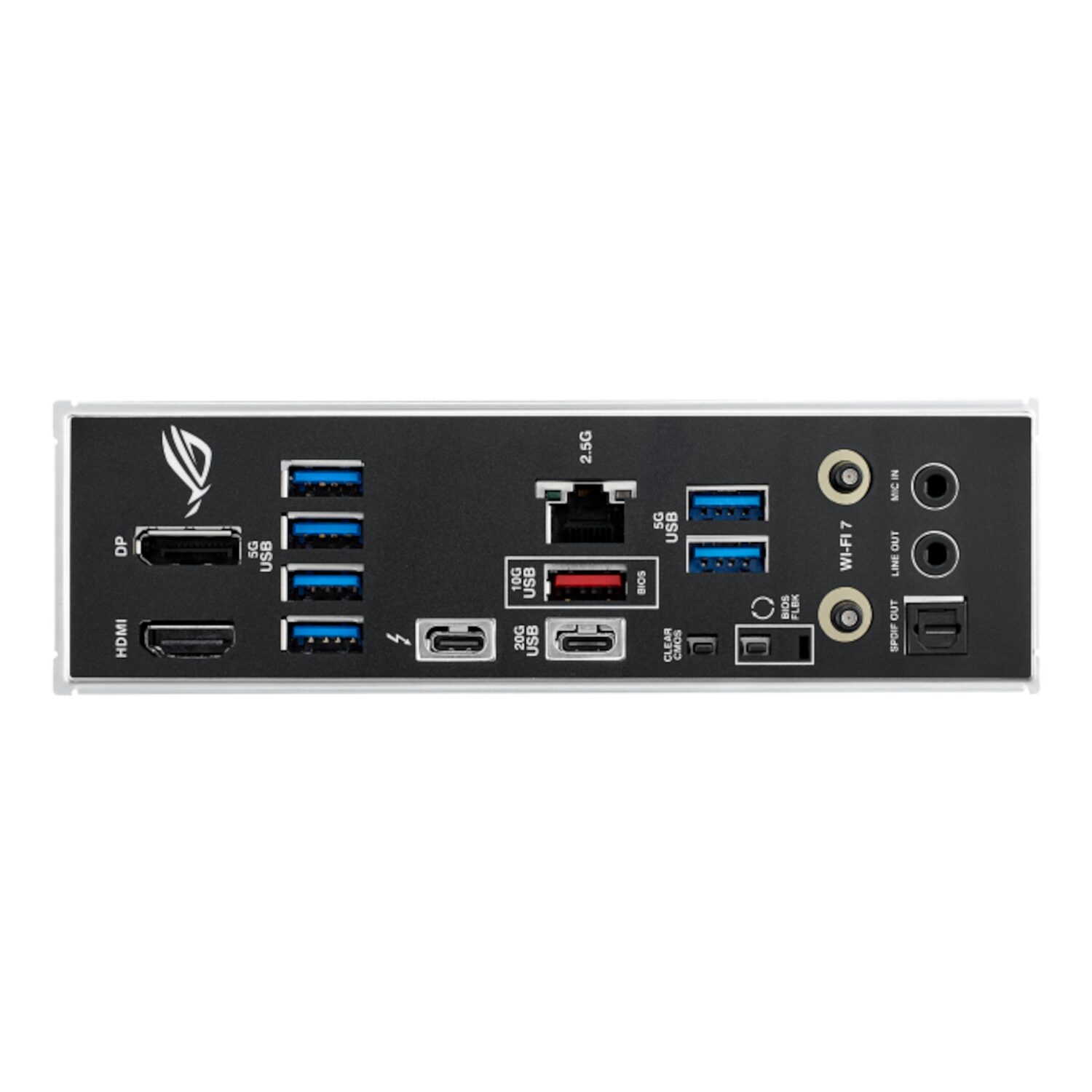

• Back Panel I/O Ports
  • 1 x Thunderbolt? 4 (1 x USB Type-C?)
  • 1 x USB 20Gbps port (1 x USB Type-C?)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 6 x USB 5Gbps ports (6 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI? port
  • 1 x Wi-Fi module
  • 1 x Intel? 2.5Gb Ethernet port
  • 2 x audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack? button
  • 1 x Clear CMOS button
• Internal I/O Connectors
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • Power Related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors
  • Storage Related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 10Gbps connector (supports USB Type-C?)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen2 headers
  • 1 x Chassis Intrusion header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x Start button
  • 1 x 10-1 pin Front System Panel header
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt? (USB4?) header
• Special Features
  • Extreme Engine Digi+
    • – 5K Black metallic capacitors
  • ASUS Q-Design
    • – M.2 Q-Latch
    • – M.2 Q-Release
    • – M.2 Q-Slide
    • – PCIe Slot Q-Release Slim (with PCIe SafeSlot)
    • – Q-Antenna
    • – Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    • – Q-Slot
  • ASUS Thermal Solution
    • – M.2 heatsink backplate
    • – M.2 heatsink
    • – VRM heatsink design
  • ASUS EZ DIY
    • – BIOS FlashBack? button
    • – BIOS FlashBack? LED
    • – Clear CMOS button
    • – CPU Socket lever protector
    • – ProCool
    • – Pre-mounted I/O shield
    • – SafeSlot
    • – SafeDIMM
  • Aura Sync
    • – Addressable Gen2 headers
• Software Features
  • ROG Exclusive Software
    • – ROG CPU-Z
    • – Dolby Atmos
  • ASUS Exclusive Software
  • Armoury Crate
    • – Aura Creator
    • – Aura Sync
    • – Fan Xpert 4
    • – GameFirst
    • – Power Saving
  • ASUS Driver Hub
    AIDA64 Extreme (60-day free trial)
  • HWiNFO
  • ASUS GlideX
  • TurboV Core
  • Adobe Creative Cloud (Days Free Trial)
  • Norton 360 for Gamers (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
  • UEFI BIOS
    NPU Boost
  • ASUS EZ DIY
    • – ASUS CrashFree BIOS 3
    • – ASUS EZ Flash
    • – ASUS UEFI BIOS EZ Mode
    • – ASUS MyHotkey
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows? 11 (22H2 & later)
• Form Factor:
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

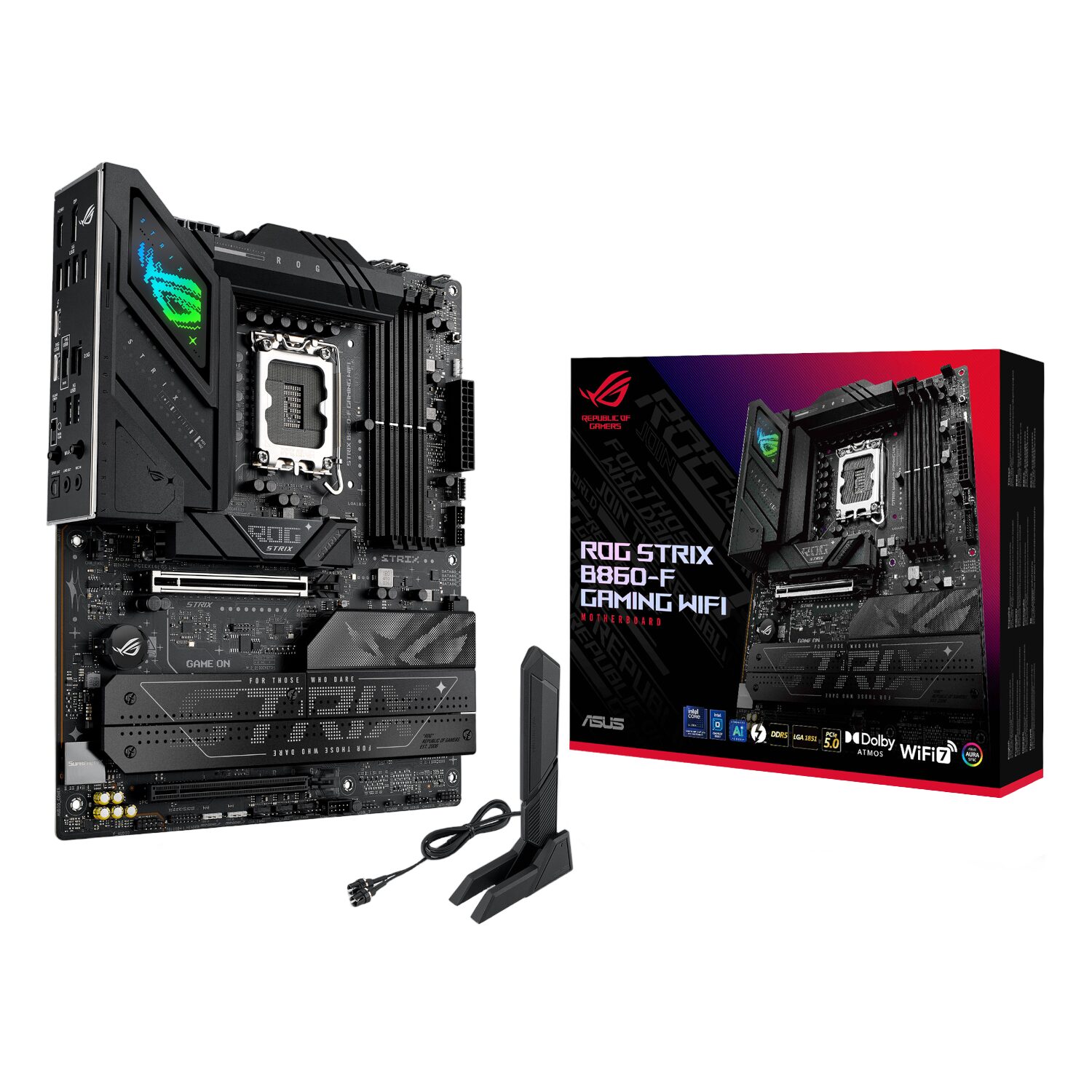

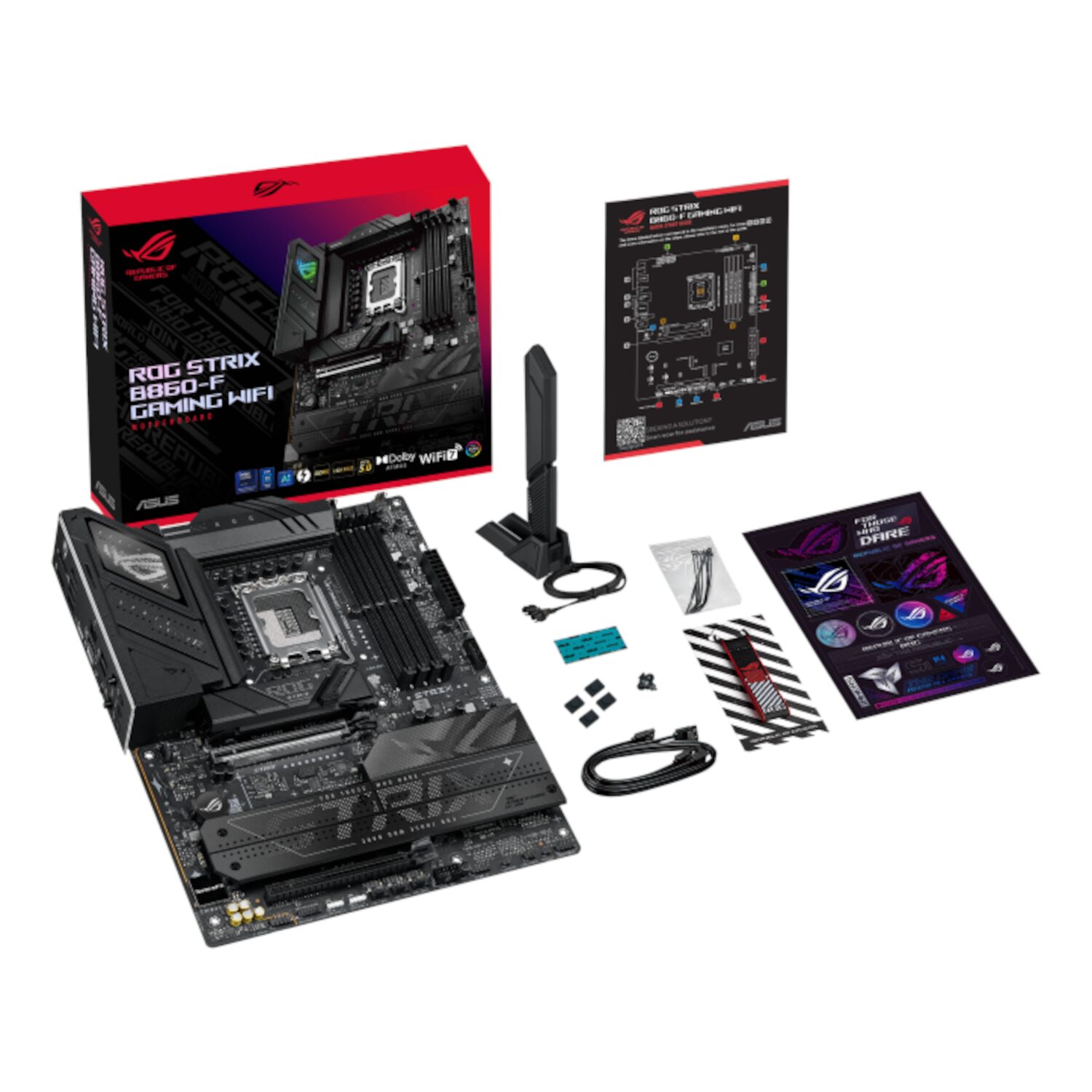

WHAT’S IN THE BOX:

• Asus ROG STRIX B860-F Gaming Wi-Fi Motherboard – Intel LGA1851 x
• SATA 6Gb/s cables x2
• ASUS WiFi Q-Antenna x2
• Cable ties package x1
• M.2 Q-Latch package x1
• M.2 Q-Slide package x1
• ROG key chain x1
• ROG Strix stickers x1
• M.2 rubbers x4
• Quick start guide x1
